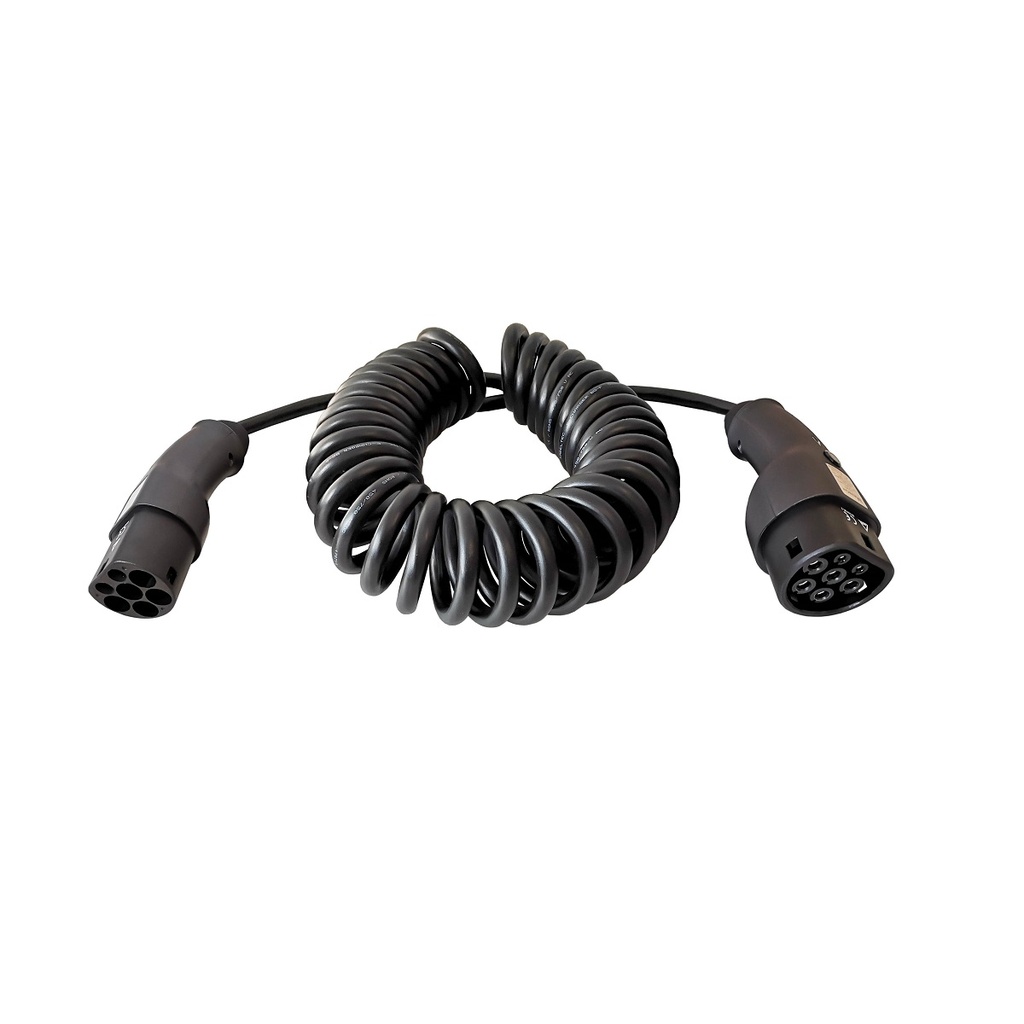

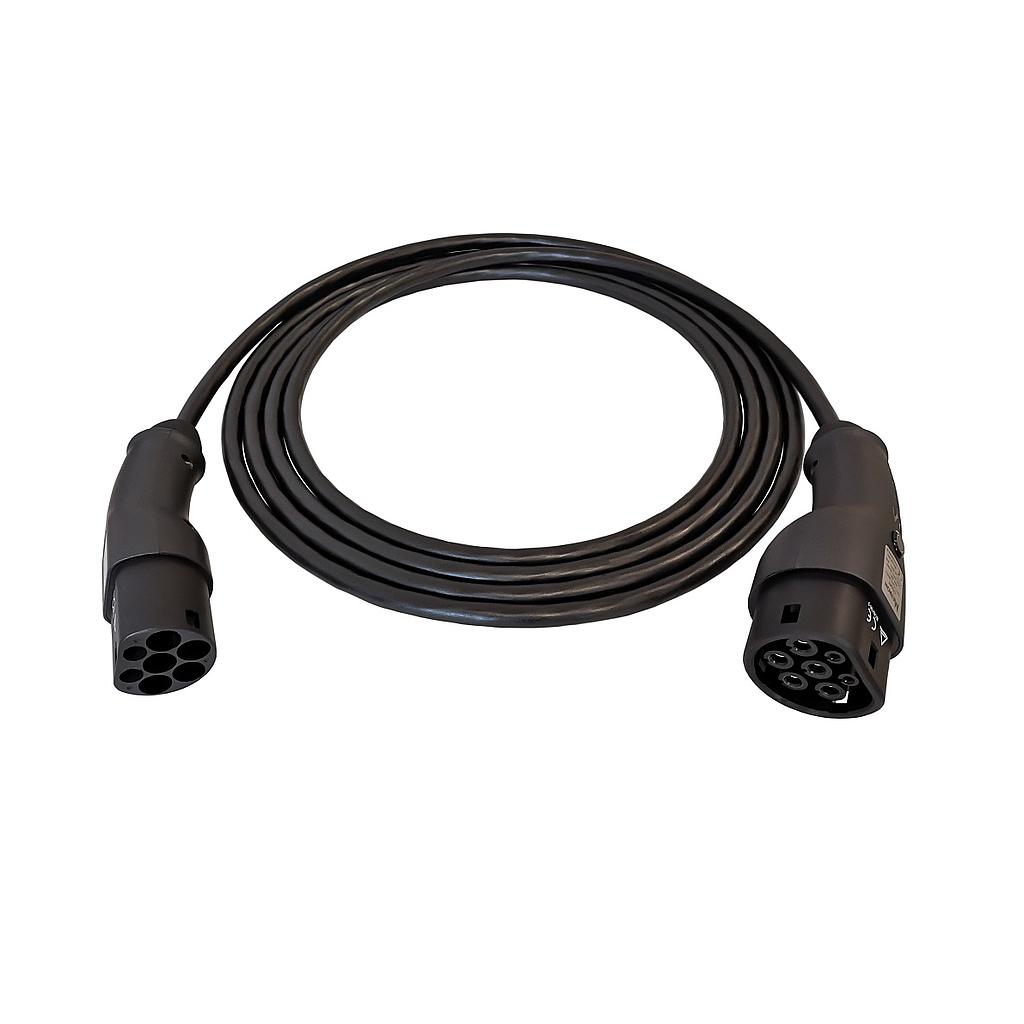

Charging cable for electric vehicles with button to open Tesla charge port Type 2 to Type 2 (20A, 3-Phases)
Main features:
Designed for 3-phase EV charging with currents up to 3 x 20A (13.8 kW)

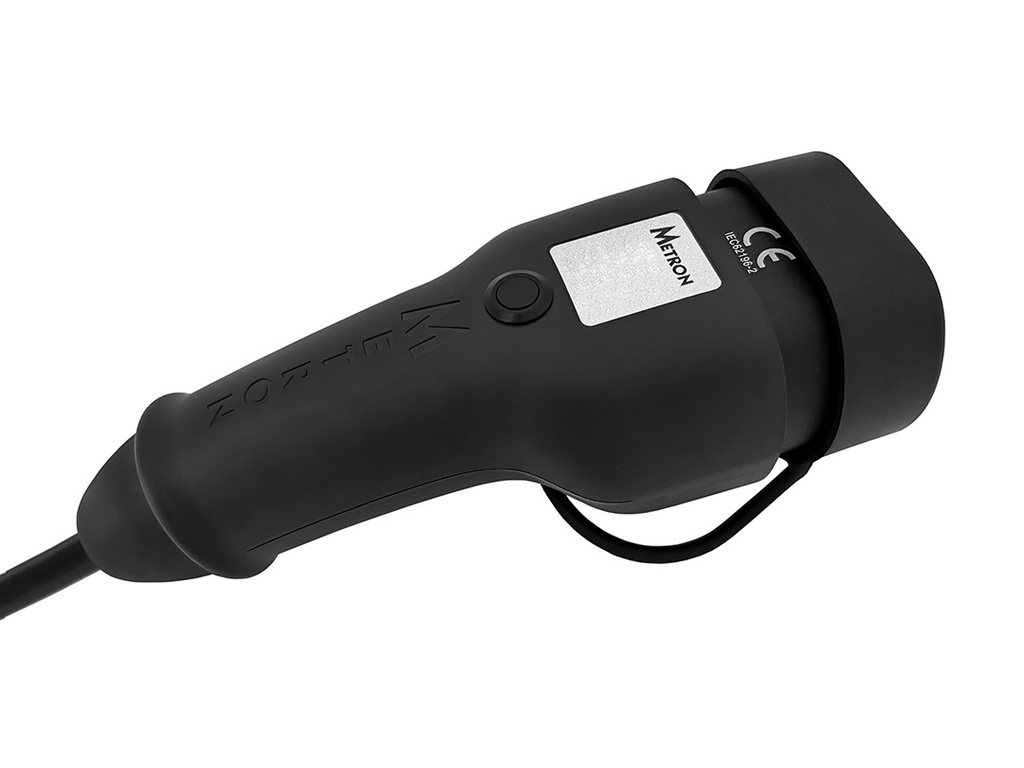

Integrated Tesla remote charging port opener and plug unlocker
PREMIUM quality EV cable used (Made in Germany)
Variable cable lengths from 3m to 30m (contact us for lengths above 20 m, due to a need for customized proforma invoice)
3 YEARS WARRANTY
Technical Specifications:
Plug Type (EV Side): Type 2 (IEC 62196) Female Plug
Plug Type (Charging Station Side): Type 2 (IEC 62196) Male Plug
Max. Charging Current: 3 x 20A (3-phase)
Max. Charging Power: 13.8 kW (3-phase)
Rated Voltage: 400V (3-phase)
Integrated battery powered Tesla remote charging port opener and plug unlocker (estimated battery life: 5 years; can be replaced)
Cable Length: customer defined
UV, oil and flame resistant cable insulation
Operating Ambient Air Temperature Range: -30 °C to +50 °C
IP Rating: IP44
Cable Color: Black or Orange
Weight: depends on cable length
Specially developed for charging European versions of Tesla electric vehicles that have Type 2 charging sockets and 3-phase onboard chargers (Model 3, Model S, Model X)
Also compatible with all EVs that have Type 2 charging sockets and 1-phase or 3-phase on-board chargers but in any case the charging power won’t be higher than 4.6 kW (20A/1-phase) or 13.8 kW (20A/3-phase).
It contains a CR2032 3V battery that should be replaced every 2-4 years. Battery is not covered by warranty!
